314Ah High-Capacity Cells Arrive: How the Deye GE-F Series Achieves 8,000+ Cycle Life

Cycle life numbers on a battery datasheet tend to blur together after a while — 6,000, 8,000, 10,000, all sitting in roughly the same neighborhood of "long enough." What actually separates them is rarely the chemistry itself. Lithium iron phosphate has been the default C&I chemistry for years. The differentiator is cell architecture: how many cells sit in a pack, how much current each one carries, and how evenly heat spreads across them. That's the story behind the 314Ah cell powering Deye's small-scale C&I ESS solutions, and it's why the GE-F128/F240/F256 outdoor battery cabinet series is rated for 8,000 cycles at 0.5C and 25°C to 70% end-of-life.

From 100Ah to 314Ah: Fewer Cells, Fewer Failure Points

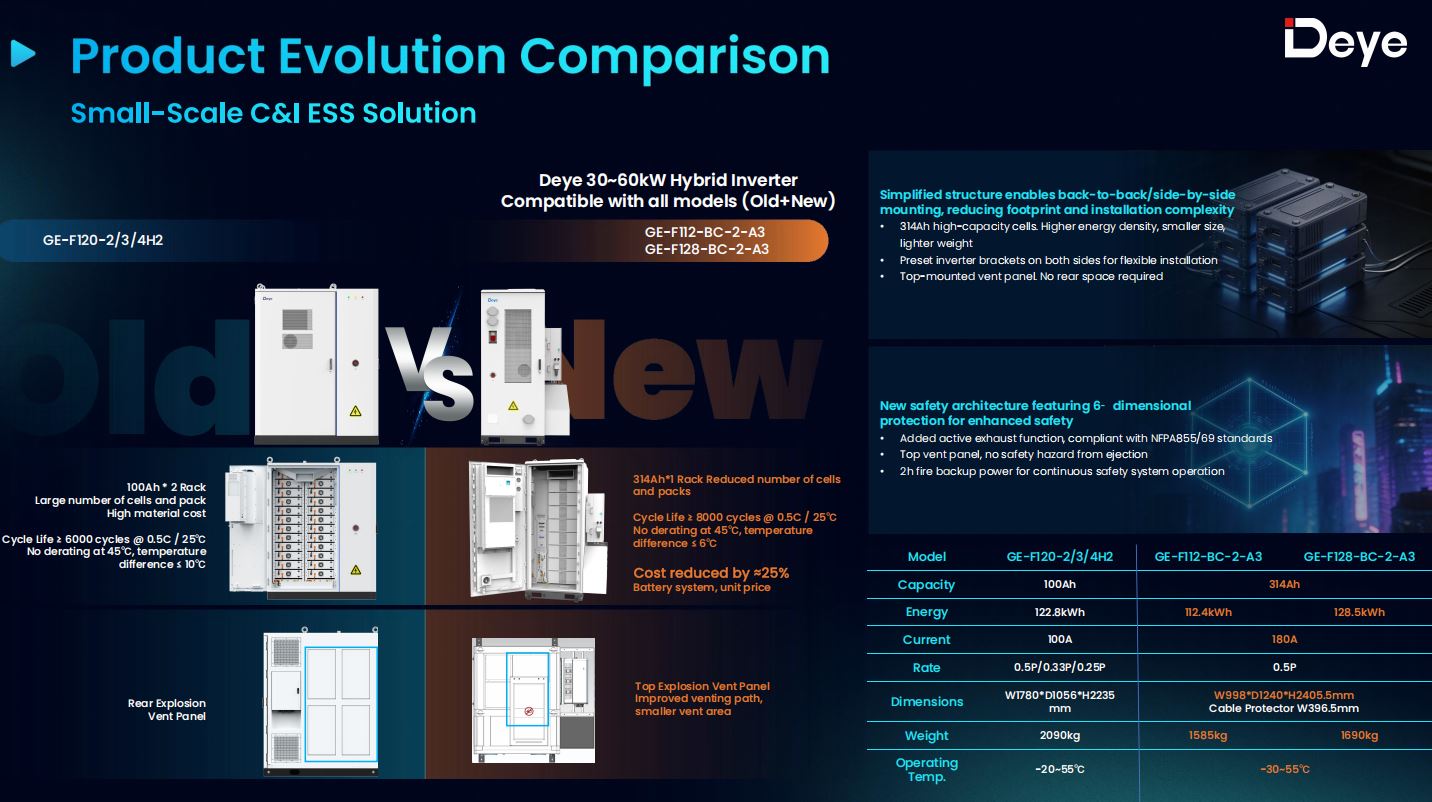

Deye's prior-generation cabinet, the GE-F120-2/3/4H2, built its pack from 100Ah cells arranged two racks deep. Getting to a usable energy figure meant stacking a large number of individually smaller cells, which multiplies the number of series/parallel connections, busbar joints, and welds inside the pack — every one of which is a potential resistance point, and every resistance point generates heat under load.

The GE-F series consolidates that into a single 314Ah cell per position, wired 1P16S into a 51.2V, 16.08kWh module. A GE-F128 cabinet needs just 8 of these modules to reach 128.5kWh; the GE-F256 needs 16 to reach 257.23kWh. Fewer, larger cells means a simpler internal harness, fewer joints to fail over a 10-year warranty period, and — because manufacturing and assembly cost scales with part count more than raw capacity — a roughly 25% lower unit price on the GE-F128 platform and about 15% lower on the GE-F240/256 platform compared to the older design.

What "8,000 Cycles" Actually Means

The rating isn't a marketing round number — it comes with specific test conditions: 0.5C charge/discharge rate, 25°C ambient, cycling to 70% end-of-life capacity. That's the industry-standard way to state cycle life, and it's directly comparable to the previous-generation cell's rating of 6,000 cycles under the same 0.5C/25°C conditions. A 33% increase in rated cycles at the same discharge rate, from a cell with roughly triple the per-unit capacity, points to a genuinely different internal design rather than a looser test standard.

In practical terms, at one full cycle per day, 8,000 cycles works out to roughly 21–22 years before the pack degrades to 70% of its original capacity — well beyond the cabinet's 10-year warranty period, and enough headroom that most C&I operators will retire or repower a site for reasons other than battery degradation.

The Thermal Design Behind the Rating

Cycle life claims fall apart quickly if a pack runs hot or unevenly, since uneven cell temperature is one of the fastest ways to accelerate degradation on the hottest cells in a stack. This is where the GE-F series' cooling architecture does the real work behind the cycle-life number.

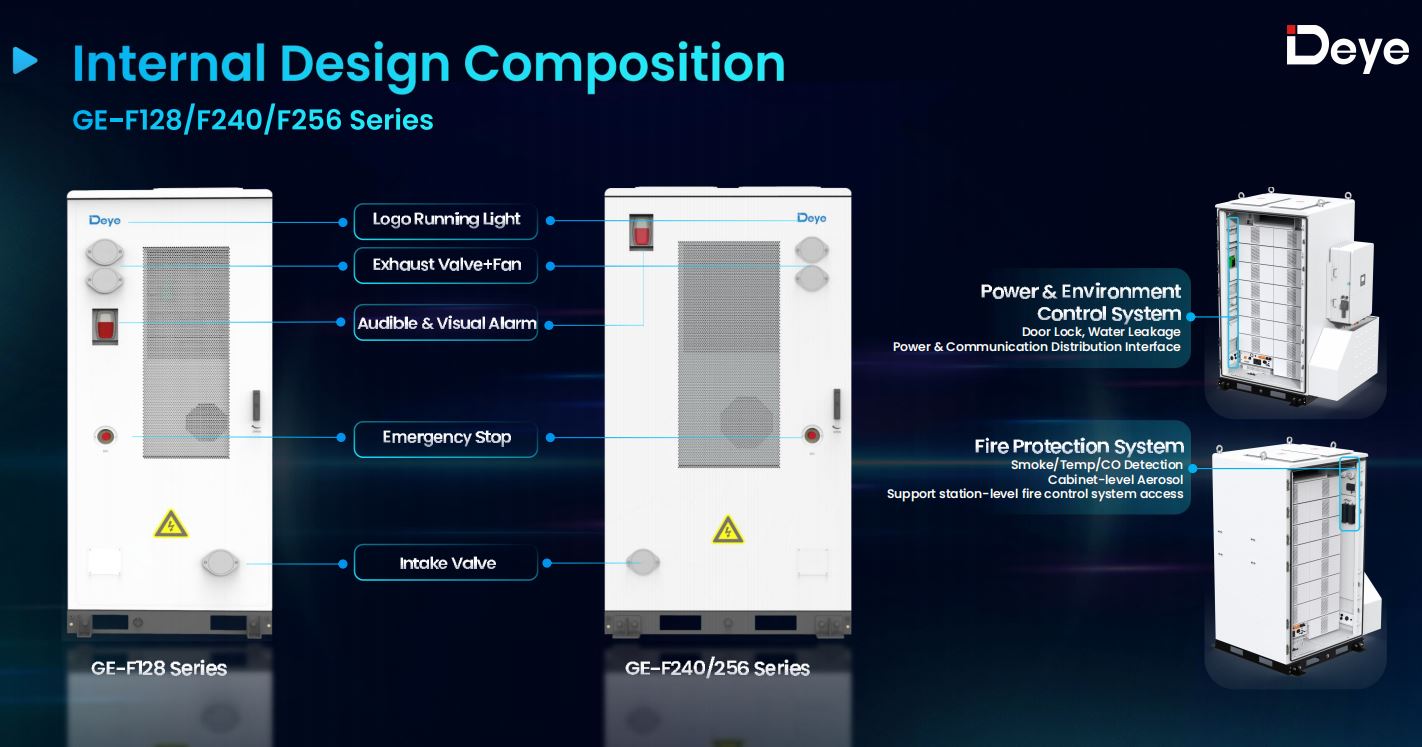

Each cabinet uses a three-level — cell, module, pack — precision-simulated air conditioning duct, driven by a 3kW air conditioner on the GE-F128 and a 5kW unit on the GE-F240/256. The result is a maximum cell-to-cell temperature difference of 6°C, down from 10°C on the previous generation, with no output derating up to 45°C ambient. A tighter thermal spread means every cell in the pack ages at closer to the same rate, rather than a handful of hot spots wearing out early and dragging down the pack's overall usable capacity long before the rest of the cells are anywhere near end-of-life.

180A Continuous, 285A Peak — Without Extra Derating

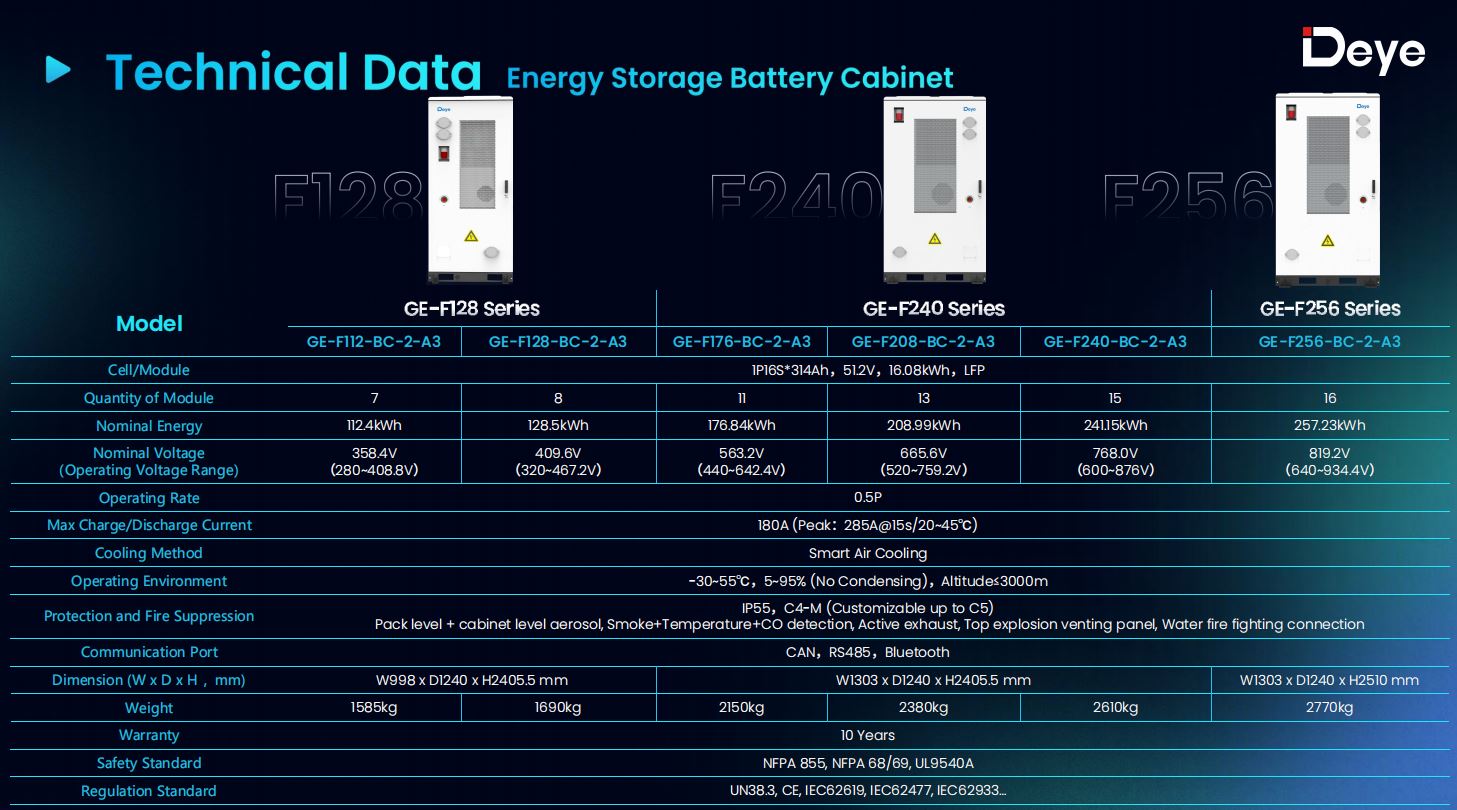

Larger cells also raise the ceiling on how much current a pack can handle without stressing individual cells disproportionately. Every cabinet in the GE-F series — from the 112.4kWh GE-F112 up to the 257.23kWh GE-F256 — shares the same current envelope: 180A continuous, 285A peak for 15 seconds at 20–45°C, at a 0.5P operating rate. That consistency matters for system design, because it means the same charge/discharge assumptions apply whether a project starts with a single GE-F128 cabinet or scales up to a multi-cabinet GE-F256 stack.

For comparison, competing air-cooled cabinets built on lower-capacity cells (commonly 280Ah) typically cap out closer to 130–140A, with wider cell temperature spreads and lower no-derating thresholds around 40°C. The gap becomes tangible on a hot rooftop or loading dock in the middle of a summer afternoon — one system holds full rated output, the other quietly throttles.

One Cell, Six Cabinet Configurations

Because every GE-F cabinet is built from the same 16.08kWh module, the 8,000-cycle rating applies uniformly across the entire lineup rather than being a headline figure for one flagship SKU:

• The GE-F112/128 outdoor battery cabinet — 112.4kWh and 128.5kWh, built from 7 or 8 modules
• The GE-F240/256 outdoor battery cabinet series — covering GE-F176 (176.84kWh), GE-F208 (208.99kWh), GE-F240 (241.15kWh), and GE-F256 (257.23kWh), from 11 to 16 modules

All six configurations carry the same 10-year warranty and the same UN38.3, CE, IEC62619, IEC62477, and IEC62933 certifications, so choosing a capacity tier is purely a question of site energy requirements — not a trade-off against cell quality or expected service life.

What This Means for a 10-Year TCO Calculation

A cycle-life rating only translates into real savings if it's paired with a lower entry cost and a cooling system that can actually deliver on the no-derating claim in the field — otherwise it's a lab number. On the GE-F series, all three line up: the 314Ah cell architecture cuts unit cost by 15–25% depending on cabinet size, the 6°C thermal spread protects the 8,000-cycle rating from being undercut by hot-spot degradation, and the no-derating threshold at 45°C means the rated cycle count is achievable in real outdoor conditions rather than only in a climate-controlled lab.

For system integrators sizing a 100–300kWh battery energy storage system for a C&I project, that combination shifts the calculation from "which battery is cheapest today" to "which battery still has meaningful capacity left in year 15." On paper, at least, the GE-F series is built to answer that question favorably.
